LA3220 - 2-Channel Equalizer Amplifier

Features

  • Dual pre-amp with built-in ALC (pre-amp × 2 + ALC × 2).
  • Due to high gain, recording amp can be formed separately (variable monitor possible).
  • ALC and direct motor drive obtained through SEPP output stage.
  • Good ALC response balance between channels.
  • Good reduced voltage characteristic.
  • Excellent channel separation.
  • Quick stabilization during power supply input. Package Dimensions unit:mm 3003A-DIP14 [LA3220] 14 8 1 19.2 7 0.

📥 Download Datasheet

Datasheet preview – LA3220

Datasheet Details

Part number LA3220
Manufacturer SANYO (now Panasonic)
File Size 321.62 KB
Description 2-Channel Equalizer Amplifier
Datasheet download datasheet LA3220 Datasheet
Additional preview pages of the LA3220 datasheet.

📁 Similar Datasheet

Other Datasheets by Sanyo
  • LA3210 - Equalizer Amplifier
  • LA3115 - LA3115 / LA3122
  • LA3122 - LA3115 / LA3122
  • LA3301 - LA3301
  • LA3361 - PLL FM Multiplex Stereo Demodulator
  • LA3365 - PLL FM MPX
  • LA3376 - Pilot Cancel-Provided PLL FM MPX Demodulator
  • LA3390 - PLL FM MPX Demodulator

Full PDF Text Transcription

Click to expand full text

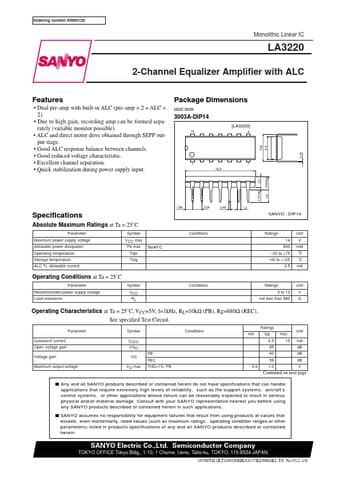

Ordering number:ENN912D Monolithic Linear IC LA3220 2-Channel Equalizer Amplifier with ALC Features • Dual pre-amp with built-in ALC (pre-amp × 2 + ALC × 2). • Due to high gain, recording amp can be formed separately (variable monitor possible). • ALC and direct motor drive obtained through SEPP output stage. • Good ALC response balance between channels. • Good reduced voltage characteristic. • Excellent channel separation. • Quick stabilization during power supply input. Package Dimensions unit:mm 3003A-DIP14 [LA3220] 14 8 1 19.2 7 0.51min 3.0 7.62 3.4 3.65max 6.4 0.25 Specifications 1.98 2.54 0.48 1.2 SANYO : DIP14 Absolute Maximum Ratings at Ta = 25˚C Parameter Maximum power supply voltage Allowable power dissipation Operating temperature Storage temperature ALC Tr.
