LA7054 Datasheet - Sanyo

LA7054 - Video / Audio Signal Processor

Ordering number : EN2558A Monolithic Linear IC LA7054 Video, Audio Signal Processor for UHF Band RF Modulator Overview Package Dimensions The LA7054 is a video, audio signal processor IC for UHF unit: mm band RF modulators.

It performs the functions of TSG (test 3017C-SIP9 signal generator), video clamp circuit, white clip circuit, audio FM modulator.

It is highly stable to supply voltage variations because the LA7054 has an internal voltage regulator.

[LA7054] Functions Audio F

LA7054 Features

* Low-voltage operation : VCC=5V

* Highly stable to supply voltage variations because the LA7054 has an internal voltage regulator.

* On-chip TSG (test signal generator).

* Good frequency characteristic of white clip.

* Wide amplitude of audio carrier and less

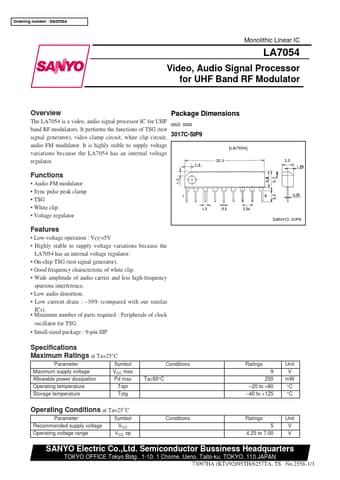

LA7054_SanyoSemiconDevice.pdf

Preview of LA7054 PDF
LA7054 Datasheet Preview Page 2 LA7054 Datasheet Preview Page 3

Datasheet Details

Part number:

LA7054

Manufacturer:

Sanyo

File Size:

52.01 KB

Description:

Video / audio signal processor.
