LA7160M - VHF Band RF Modulator

Product Overview

Sanyo

📥 Download Datasheet

LA7160M VHF Band RF Modulator by Sanyo - Datasheet Preview — Datasheet preview – LA7160M

Datasheet Details

Part number	LA7160M
Manufacturer	Sanyo
File Size	39.78 KB
Description	VHF Band RF Modulator
Datasheet	LA7160M Datasheet

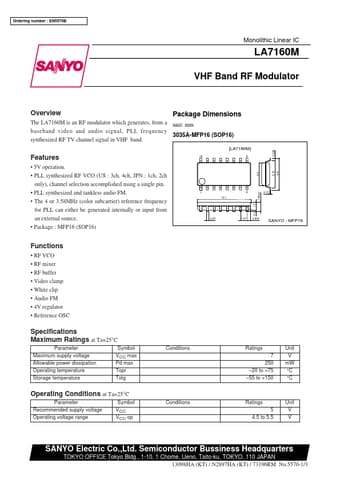

Additional preview pages of the LA7160M datasheet.

Product details

Features

5V operation.
PLL synthesized RF VCO (US : 3ch, 4ch, JPN : 1ch, 2ch only), channel selection accomplished using a single pin.
PLL synthesized and tankless audio FM.
The 4 or 3.58MHz (color subcarrier) reference frequency for PLL can either be generated internally or input from an external source.
Package : MFP16 (SOP16) 16 9 10.1 1.5 0.35 1.27 0.605 0.1 1.8max 1 8 0.15 SANYO : MFP16 Functions.
RF VCO.
RF mixer.
