LA9200NM - Analog Signal Processors

Sanyo

📥 Download Datasheet

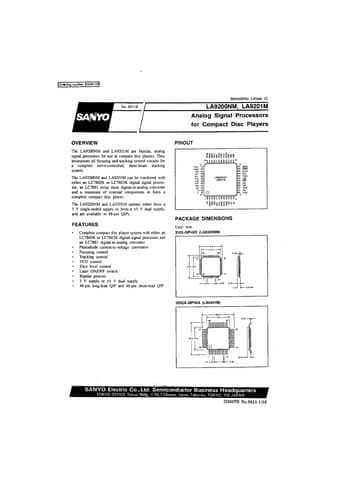

LA9200NM Datasheet Preview — Preview of LA9200NM PDF

Datasheet Details

Part number	LA9200NM
Manufacturer	Sanyo
File Size	630.33 KB
Description	Analog Signal Processors
Datasheet	LA9200NM_SanyoSemiconDevice.pdf

LA9200NM Product details

Description

Number 1 2 3 4 5 6 7 6 9 10 11 12 13 14 15 Pin FO TEAO TESI VR3 TPA+ TPATPRO TOFS THDS JPO JPJP+ THLO TGL TOFF Description Photodiode F current-to-voltage converter output Tracking error amplifier output Tracking error slice comparator input Reference voltage Tracking error preamplifier non-inverting input Tracking error preamplifier inverting input Tracking error preamplifier output Tracking OFF switch Tracking hold switch Jump pulse amplifier output Jump pulse amplifier inverting input Jump

Features

Complete compact disc player system with either an LC7860K or LC7863K digital signal processor and an LC7881 digital-to-analog converter Photodiode current-to-voltage converters Focusing control Tracking control VCO control Slice level control Laser ON/OFF switch Bipolar process 5 V supply or ±5 V dual supply 48-pin long-lead QIP and 48-pin short-lead QIP PINOUT nuzuthn.
7 B B n P B H H H R H R ' BFS- IDSW IDD VCC FFVIIVVE1E2 IA9200NW LA9201M VVRBI2 oEO.
