LC322271T-80, LC3 Datasheet - Sanyo

LC322271T-80, LC3, 2 MEG (131072 words X 16 bits) DRAM

Ordering number : EN *5085A CMOS LSI LC322271J, M, T-70/80 2 MEG (131072 words × 16 bits) DRAM Fast Page Mode, Byte Write Preliminary Overview Th.

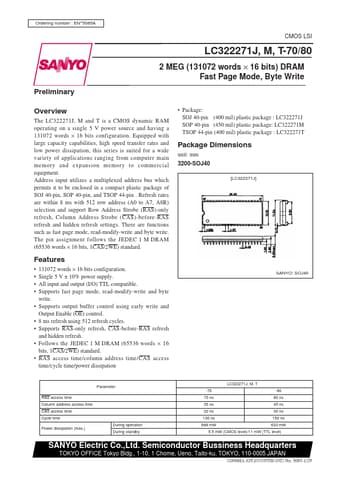

datasheet Preview Page 1 from Datasheet4u.com

LC3-222.pdf

LC322271T-80 Datasheet Preview — This datasheet PDF includes multiple part numbers: LC322271T-80, LC3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LC322271T-80, LC3

Manufacturer:

Sanyo

File Size:

1.12 MB

Description:

2 MEG (131072 words X 16 bits) DRAM

Note:

This datasheet PDF includes multiple part numbers: LC322271T-80, LC3.
Please refer to the document for exact specifications by model.

Features

* 131072 words × 16 bits configuration. Single 5 V ± 10% power supply. All input and output (I/O) TTL compatible. Supports fast page mode, read-modify-write and byte write. Supports output buffer control using ea

Applications

* ranging from computer main memory and expansion memory to commercial equipment. Address input utilizes a multiplexed address bus which permits it to be enclosed in a compact plastic package of SOJ 40-pin, SOP 40-pin, and TSOP 44-pin . Refresh rates are within 8 ms with 512 row address (A0 to A7, A8R
