LC665308A Four-Bit Single-Chip Microcontroller

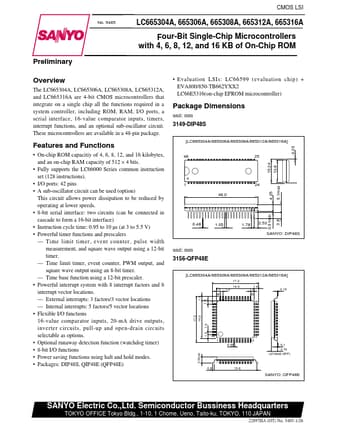

Preliminary No. 5485 CMOS LSI LC665304A, 665306A, 665308A, 665312A, 665316A Four-Bit Single-Chip Microcontrollers with 4, 6, 8, 12, and 16 KB of On-Chip ROM Overview The LC665304A, LC665306A, LC665308A, LC665312A, and LC665316A are 4-bit CMOS microcontrollers that integrate on a single chip all the functions required in a system controller, including ROM, RAM, I/O ports, a serial interface, 16-value comparator inputs, timers, interrupt functions, and an optional sub-oscillator circuit. These .

LC665308A Features

* and Functions

* On-chip ROM capacitiy of 4, 6, 8, 12, and 16 kilobytes, and an on-chip RAM capacity of 512 × 4 bits.

* Fully supports the LC66000 Series common instruction set (128 instructions).

* I/O ports: 42 pins

* A sub-oscillator circuit can be used (option) Thi

LC665306A_SanyoSemiconDevice.pdf

LC665308A Datasheet Preview — This datasheet PDF includes multiple part numbers: LC665308A, LC665306A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LC665308A, LC665306A

Manufacturer:

Sanyo

File Size:

174.79 KB

Description:

Four-bit single-chip microcontroller.

Note:

This datasheet PDF includes multiple part numbers: LC665308A, LC665306A.
Please refer to the document for exact specifications by model.
