MCH5803 - DC / DC Converter Applications

Sanyo

Datasheet Details

Part number	MCH5803
Manufacturer	Sanyo
File Size	48.35 KB
Description	DC / DC Converter Applications
Datasheet	MCH5803_SanyoSemiconDevice.pdf

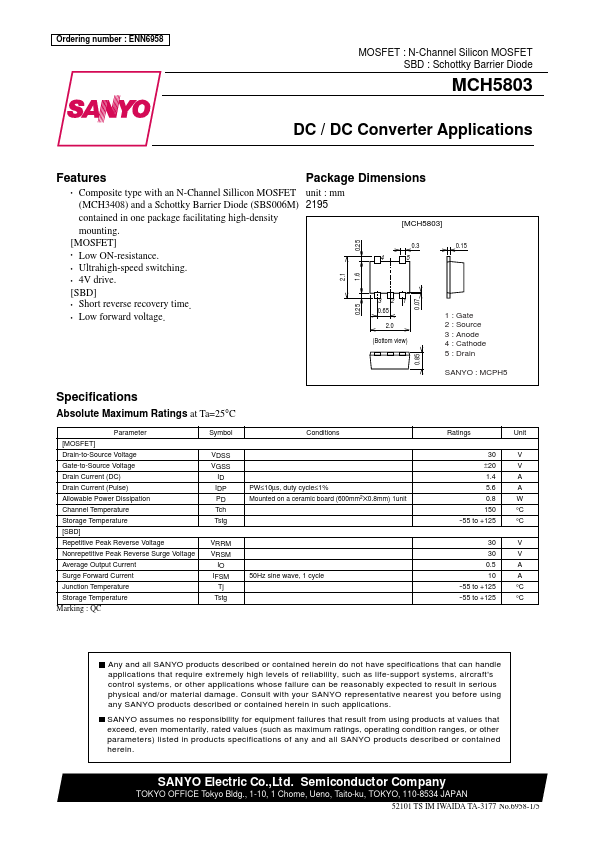

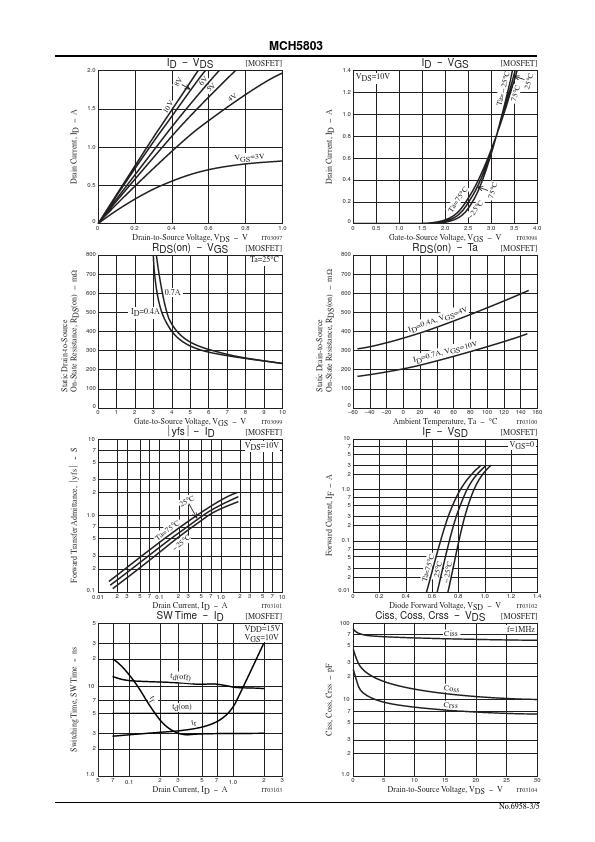

Package Dimensions Composite type with an N-Channel Sillicon MOSFET unit : mm (MCH3408) and a Schottky Barrier Diode (SBS006M) 2195 contained in one package facilitating high-density mounting. [MOSFET].
Low ON-resistance.
Ultrahigh-speed switching.
4V drive. [SBD].
Short reverse recovery time.
Low forward voltage. [MCH5803] 0.25 0.3 0.15 4 1.6 5 2.1 0.25 3 2 0.65 2.0 0.07 1 (Bottom view) 0.85 1 : Gate 2 : Source 3 : Anode 4 :.
