PMM-MD-23220-10 2-phase Stepping Driver

Pulse I/F (DC power input) 2-phase Stepping Driver DC24V/36V Unipolar type (Applicable motor rated current 1.2A/phase, 2A/phase) Micro-step (200 X 1~8 divisions) (Smooth operation and low vibration even at low speeds.) PMM-MD-23210-10 (Photo coupler input method) PMM-MD-23211-10 (CMOS input method) PMM-MD-23220-21 (Photo coupler input method) PMM-MD-23221-21 (CMOS input method) PMM-MD-23220-10 (Photo coupler input method) PMM-MD-23221-10 (CMOS input method) Standard combined stepping motors .

PMM-MD-23220-10 Features

* ircuit (stepping motor) is activated.

* Switching the input signal U/D should be performed while the input level on the CK side is “L”. 29 PMM-BA-4803 PMM-BA-4804 PMM-UA-4303 PMM-UA-4304 PMM-MD

PMM-MD-23210-10-Sanyo.pdf

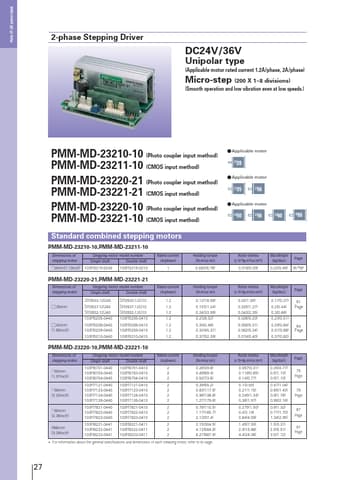

PMM-MD-23220-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: PMM-MD-23220-10, PMM-MD-23210-10. Please refer to the document for exact specifications by model.

PMM-MD-23220-10 Datasheet Preview Page 2

PMM-MD-23220-10 Datasheet Preview Page 3

Datasheet Details

Part number:

PMM-MD-23220-10, PMM-MD-23210-10

Manufacturer:

Sanyo

File Size:

584.27 KB

Description:

2-phase stepping driver.

Note:

This datasheet PDF includes multiple part numbers: PMM-MD-23220-10, PMM-MD-23210-10.
Please refer to the document for exact specifications by model.
