RD2003JS-SB - Ultrahigh-Speed Switching Diode

Sanyo

📥 Download Datasheet

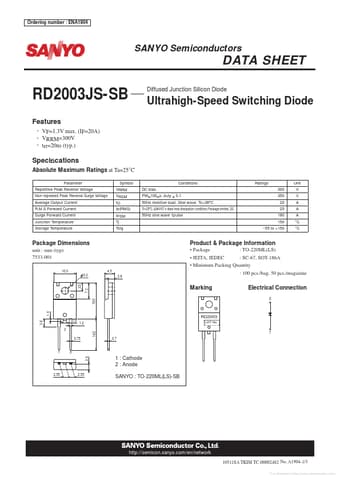

RD2003JS-SB Datasheet Preview — Preview of RD2003JS-SB PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RD2003JS-SB
Manufacturer: Sanyo
File Size: 210.77 KB
Datasheet: RD2003JS-SB_Sanyo.pdf
Description: Ultrahigh-Speed Switching Diode

RD2003JS-SB Product details

Features

Diffused Junction Silicon Diode Ultrahigh-Speed Switching Diode VF=1.3V max. (IF=20A) VRRM=300V trr=20ns (typ. ) Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Repetitive Peak Reverse Voltage Non-repeated Peak Reverse Surge Voltage Average Output Current R. M. S Forward Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM DC bias PW≤100μs, duty ≤ 0.1 50Hz resistive load, Sine wave Tc=38°C Tc=25°C (SANYO’s ideal heat d.
