STK311-020 Datasheet - Sanyo

STK311-020 RDS Demodulator

Ordering number:ENN5005 Thick Film Hybrid IC STK311-020 RDS Demodulator with Synchronization and Error Correction Overview The STK311-020 is an RDS demodulator hybrid IC for the Radio Data System (RDS), or multiplexed FM broadcasting of various kinds of data, specified by the European Broadcasting Union (EBU). It demodulates the multiplexed data modulating signal to recover the RDS signal and performs synchronization, error detection and error correction, Further, low-profile packaging is real.

STK311-020 Features

* 57kHz BPF built-in for adjustment-free operation

* 4MHz ceramic oscillator element built-in

* Few external components required for a complete RDS data demodulation system

* ARI-SK/DK decodrer built-in Package Dimensions unit:mm 4132A [STK311-020] 44.0 8.5max 2.6m

STK311-020 Datasheet (102.40 KB)

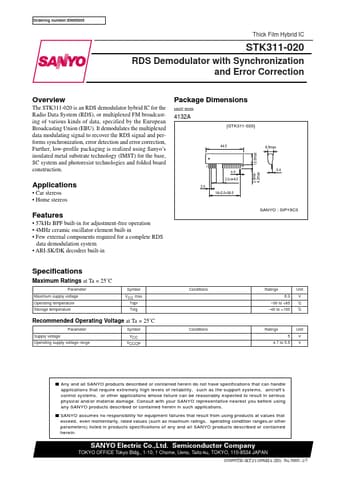

Preview of STK311-020 PDF
STK311-020 Datasheet Preview Page 2 STK311-020 Datasheet Preview Page 3

Datasheet Details

Part number:

STK311-020

Manufacturer:

Sanyo

File Size:

102.40 KB

Description:

Rds demodulator.
