STK4162II, STK4162 AF Power Amplifier (Split Power Supply) (35W + 35W min / THD = 0.4%)

STK4162II Description

Ordering number: EN2886A Thick Film Hybrid IC STK4162II AF Power Amplifier (Split Power Supply) (35W + 35W min, THD = 0.4%) .
of External Parts C1, C2 Input filter capacitors. A filter formed with R3 or R4 can be used to reduce noise at high frequencies.

STK4162II Features

* The STK4102II series (STK4162II) and STK4101V series (high-grade type) are pin-compatible in the output range of 6W to 50W and enable easy design.
* Small-sized package whose pin assignment is the same as that of the STK4101II series
* Built-in muting circuit to cut off var

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STK4162II, STK4162. Please refer to the document for exact specifications by model.

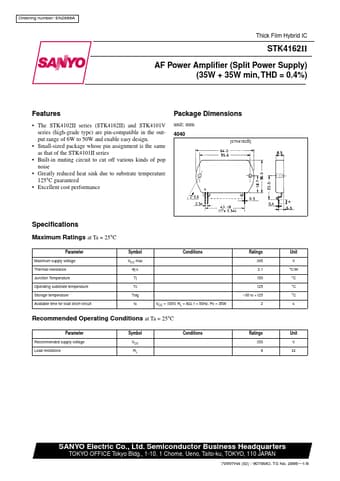

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4162II, STK4162
Manufacturer
Sanyo
File Size
460.47 KB
Datasheet
STK4162_Sanyo.pdf
Description
AF Power Amplifier (Split Power Supply) (35W + 35W min / THD = 0.4%)
Note
This datasheet PDF includes multiple part numbers: STK4162II, STK4162.
Please refer to the document for exact specifications by model.
