STK732C - 15V Single Output MOS Chopper Regulator

STK732C Description

Ordering number : EN4533B Thick Film Hybrid IC STK732C 15 V Single Output MOS Chopper Regulator Overview The STK732C is a chopper type step-down ded.

STK732C Features

* IMST substrate (insulated metal substrate technology)
* High efficiency realized by the adoption of MOSFET technology.
* An auxiliary drive power supply is no longer required due to the development of a unique NMOS FET drive circuit. This means that the STK732C can be used

STK732C Applications

* either as the secondary side regulator in a switching power supply or as the output regulator following AC transformer rectification. Applications
* Power supplies in printers and other office equipment
* Power supplies in robots and other factory automation related equipment

📥 Download Datasheet

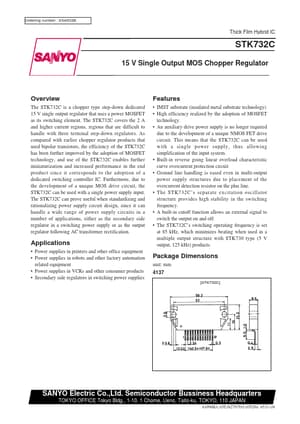

Preview of STK732C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK732C
Manufacturer
Sanyo
File Size
101.19 KB
Datasheet
STK732C-Sanyo.pdf
Description
15V Single Output MOS Chopper Regulator
