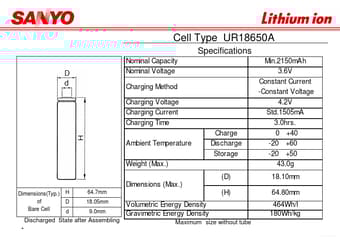

Cell Type UR18650A
Specifications
Nominal Capacity Nominal Voltage Charging Method Charging Voltage Charging Current Charging Time Ambient Temperature Weight (Max.) (D) Dimensions (Max.)
64.7mm Dimensions(Typ.) H of D 18.05mm Bare Cell d 9.0mm Discharged State after Assembling
Charge Discharge Storage
Min.2150mAh 3.6V Constant Current -Constant Voltage 4.2V Std.1505mA 3.0hrs. 0ÿ^ +40! -20ÿ^ +60! -20ÿ^ +50! 43.0g 18.10mm 64.80mm 464Wh/l 180Wh/kg
(H) Volumetric Energy Density Gravimetric Energy Density
Maximum size without tube *When designing a battery pack, get the precise information on cell a battery drawing
Free Datasheet http://www.datasheet4u.net/
Discharge Rate Characteristics for UR18650A
4.5
Temp.:20! Charge:CC-CV:0.7CA(=1.51A)-4.2V(CA/50. cut) Discharge:CC:Variable Current(E.
