2N6230 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2N6230

Manufacturer:

SavantIC

File Size:

139.10kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-3 package
  • Low collector saturation voltage
  • Excellent safe operating area APPLICATIONS
  • For

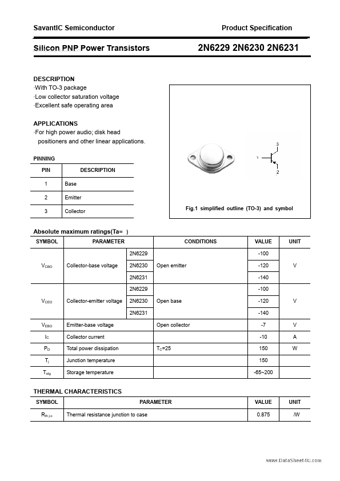

  • Datasheet Preview: 2N6230 📥 Download PDF (139.10kb)
    Page 2 of 2N6230 Page 3 of 2N6230

    2N6230 Application

    • Applications
    • For high power audio; disk head positioners and other linear applications. PINNING PIN 1 2 3 Base Emitter Collector Fig.1 simp
