2N6511 Datasheet - SavantIC

2N6511 Silicon Power Transistor

*With TO-3 package *High breakdown voltage *Low collector saturation voltage APPLICATIONS *For use in switching power supply applications and other inductive switching circuits PINNING PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute m.

2N6511 Datasheet (136.63 KB)

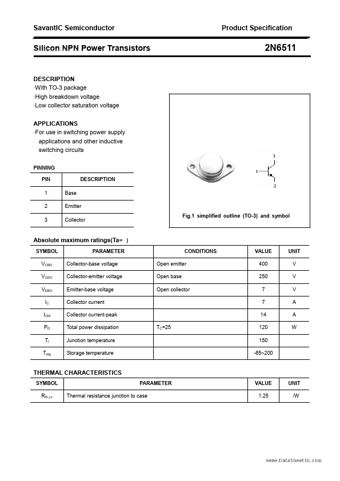

Preview of 2N6511 PDF
2N6511 Datasheet Preview Page 2 2N6511 Datasheet Preview Page 3

Datasheet Details

Part number:

2N6511

Manufacturer:

SavantIC

File Size:

136.63 KB

Description:

Silicon power transistor.
