2SA1671 Datasheet - SavantIC

2SA1671 SILICON POWER TRANSISTOR

*With TO-3PML package *Complement to type 2SC4386 APPLICATIONS *Audio and general purpose PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base v.

2SA1671_SavantIC.pdf

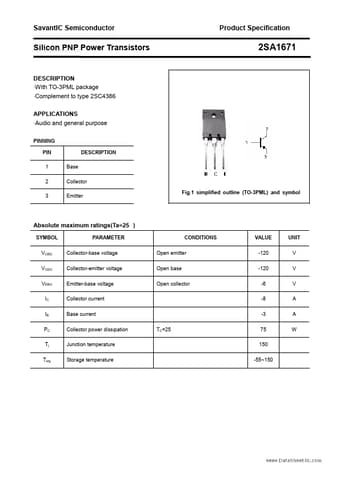

Preview of 2SA1671 PDF
2SA1671 Datasheet Preview Page 2 2SA1671 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1671

Manufacturer:

SavantIC

File Size:

178.12 KB

Description:

Silicon power transistor.
