2SB1160 - SILICON POWER TRANSISTOR

Description

With TO-3PFa package Complement to type 2SD1715 High fT Satisfactory linearity of hFE Wide area of safe operation APPLICATIONS For high power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO V

📥 Download Datasheet

Datasheet preview – 2SB1160

Datasheet Details

Part number 2SB1160
Manufacturer SavantIC
File Size 189.06 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1160 Datasheet
Additional preview pages of the 2SB1160 datasheet.

📁 Similar Datasheet

  • 2SB1160 - PNP Transistor (INCHANGE)
  • 2SB1161 - PNP Transistor (INCHANGE)
  • 2SB1162 - PNP Transistor (INCHANGE)
  • 2SB1163 - PNP Transistor (INCHANGE)
  • 2SB1165 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1165 - PNP Transistor (INCHANGE)
  • 2SB1166 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1167 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1168 - PNP Transistor (Sanyo Semicon Device)
  • 2SB1168 - PNP Transistor (INCHANGE)
Other Datasheets by SavantIC
  • 2SB1161 - SILICON POWER TRANSISTOR
  • 2SB1162 - SILICON POWER TRANSISTOR
  • 2SB1163 - SILICON POWER TRANSISTOR
  • 2SB1165 - SILICON POWER TRANSISTOR
  • 2SB1101 - SILICON POWER TRANSISTOR
  • 2SB1102 - SILICON POWER TRANSISTOR
  • 2SB1103 - SILICON POWER TRANSISTOR
  • 2SB1105 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

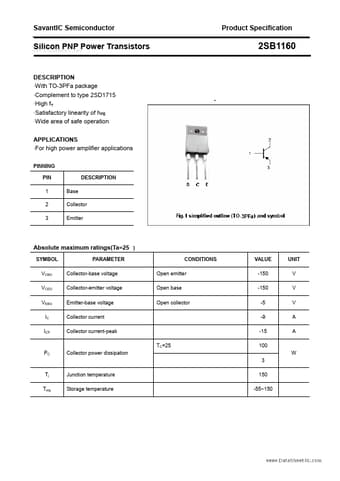

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SB1160 DESCRIPTION ·With TO-3PFa package ·Complement to type 2SD1715 ·High fT ·Satisfactory linearity of hFE ·Wide area of safe operation APPLICATIONS ·For high power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak TC=25 PC Collector power dissipation 3 Tj Tstg Junction temperature Storage temperature 150 -55~150 CONDITIONS Open emitter Open base Open collector VALUE -150 -150 -5 -9 -15 100 W UNIT V V V A A SavantIC Semiconductor www.DataSheet4U.
