2SB941A, 2SB941 Datasheet - SavantIC

2SB941A - SILICON POWER TRANSISTOR

*With TO-220Fa package *Low collector saturation voltage *Complementary to type 2SD1266/1266A APPLICATIONS *For low-frequency power amplification PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMB

2SB941_SavantIC.pdf

This datasheet PDF includes multiple part numbers: 2SB941A, 2SB941. Please refer to the document for exact specifications by model.

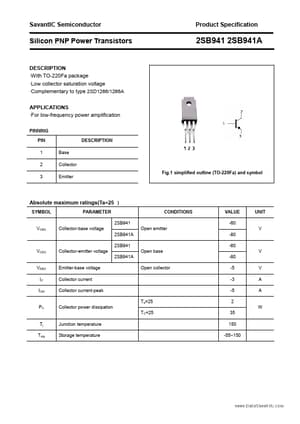

2SB941A Datasheet Preview Page 2 2SB941A Datasheet Preview Page 3

Datasheet Details

Part number:

2SB941A, 2SB941

Manufacturer:

SavantIC

File Size:

166.26 KB

Description:

Silicon power transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SB941A, 2SB941.
Please refer to the document for exact specifications by model.
