2SC1170A Datasheet - SavantIC

2SC1170A SILICON POWER TRANSISTOR

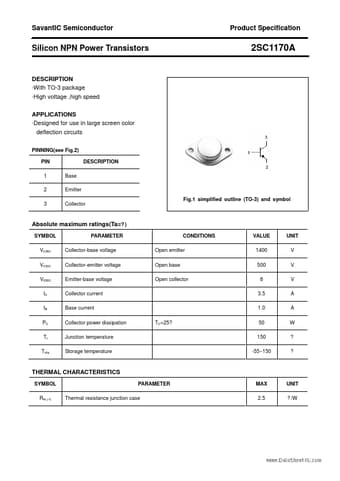

*With TO-3 package *High voltage ,high speed APPLICATIONS *Designed for use in large screen color deflection circuits PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC IB PC.

2SC1170A_SavantIC.pdf

Preview of 2SC1170A PDF
2SC1170A Datasheet Preview Page 2 2SC1170A Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1170A

Manufacturer:

SavantIC

File Size:

188.00 KB

Description:

Silicon power transistor.
