Part number: 2SC1316
Manufacturer: SavantIC
File Size: 139.44KB
Download: 📄 Datasheet
Description: SILICON POWER TRANSISTOR
*Suitable for switching power supplies in TV sets

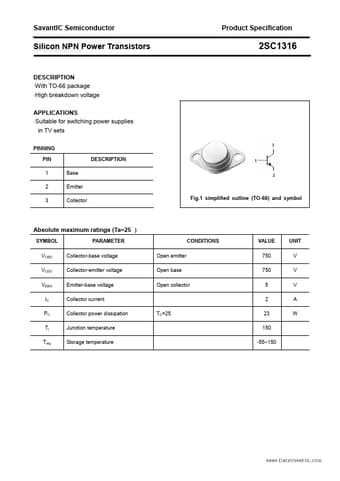

PINNING PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline .
*With TO-66 package
*High breakdown voltage APPLICATIONS
*Suitable for switching power supplies in TV sets
PINNING PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) and symbol DESCRIPTION
Absolute maximum ratings (Ta=25 ).
