2SC1618 Datasheet - SavantIC

2SC1618 SILICON POWER TRANSISTOR

*With TO-3 package *High current capacity *Wide safe oprating area APPLICATIONS *For audio frequency output applications PINNING(see fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION ABSOLUTE MAXIMUM RATINGS(Ta=25 ) SYMBOL VCBO VCEO VEBO .

2SC1618_SavantIC.pdf

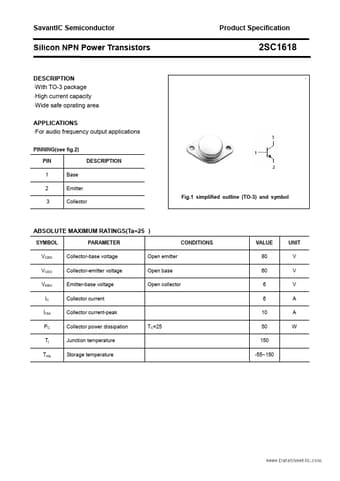

Preview of 2SC1618 PDF
2SC1618 Datasheet Preview Page 2 2SC1618 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1618

Manufacturer:

SavantIC

File Size:

135.80 KB

Description:

Silicon power transistor.
