2SC2908 - SILICON POWER TRANSISTOR

Description

With TO-3PN package Low collector saturation voltage APPLICATIONS For use in power amplifier and switching circuits applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC

📥 Download Datasheet

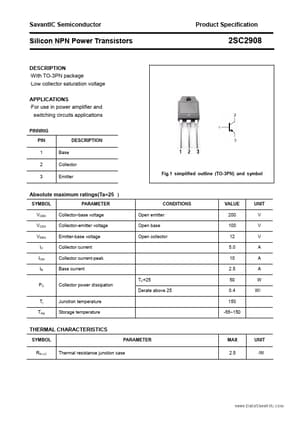

Datasheet preview – 2SC2908

Datasheet Details

Part number 2SC2908
Manufacturer SavantIC
File Size 231.55 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2908 Datasheet
Additional preview pages of the 2SC2908 datasheet.

📁 Similar Datasheet

  • 2SC2908 - POWER TRANSISTORS (Mospec Semiconductor)
  • 2SC2901 - NPN SILICON TRANSISTOR (NEC)
  • 2SC2901 - NPN Silicon Epitaxial Planar Transistor (SEMTECH)
  • 2SC2901 - NPN Silicon Epitaxial Planar Transistor (Bluecolour)
  • 2SC2901 - NPN Silicon Epitaxial Planar Transistor (PACO)
  • 2SC2902 - NPN Transistor (INCHANGE)
  • 2SC2904 - NPN TRANSISTOR (Mitsubishi Electric Semiconductor)
  • 2SC2904 - NPN SILICON RF POWER TRANSISTOR (ASI)
  • 2SC2904 - Silicon NPN POWER TRANSISTOR (HGSemi)
  • 2SC2905 - NPN TRANSISTOR (Mitsubishi Electric Semiconductor)
Other Datasheets by SavantIC
  • 2SC2902 - SILICON POWER TRANSISTOR
  • 2SC2913 - SILICON POWER TRANSISTOR
  • 2SC2914 - SILICON POWER TRANSISTOR
  • 2SC2920 - SILICON POWER TRANSISTOR
  • 2SC2923 - SILICON POWER TRANSISTOR
  • 2SC2927 - SILICON POWER TRANSISTOR
  • 2SC2928 - SILICON POWER TRANSISTOR
  • 2SC2934 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC2908 DESCRIPTION ·With TO-3PN package ·Low collector saturation voltage APPLICATIONS ·For use in power amplifier and switching circuits applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current TC=25 Collector power dissipation Derate above 25 Junction temperature Storage temperature 0.4 150 -55~150 W/ CONDITIONS Open emitter Open base Open collector VALUE 200 100 12 5.0 10 2.
