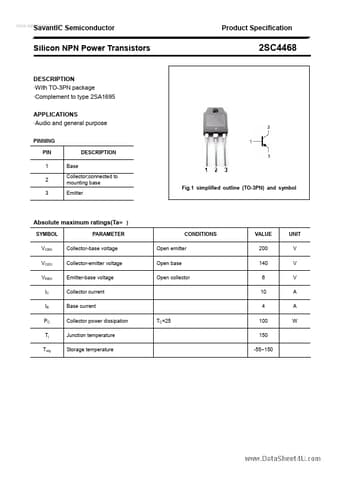

2SC4468
DESCRIPTION
- With TO-3PN package
- plement to type 2SA1695 APPLICATIONS
- Audio and general purpose
PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION
Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta= )
SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 200 140 6 10 4 100 150 -55~150 UNIT V V V A A W
..
Savant IC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25 unless otherwise specified PARAMETER Collector-emitter breakdown voltage Collector-emitter saturation voltage Collector cut-off current Emitter cut-off current DC current gain Output capacitance Transition frequency CONDITIONS IC=50m A ;IB=0 IC=5A; IB=0.5A VCB=200V; IE=0 VEB=6V; IC=0 IC=3A ; VCE=4V IE=0 ;...
