C1419 Datasheet - SavantIC

C1419 - 2SC1419

*With TO-220 package *Large collector power dissipation APPLICATIONS *For medium power amplifier applicattions PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Product Specification 2SC1419 Fig.1 simplified outline (TO-220) and symbol Absolute maximum

C1419-SavantIC.pdf

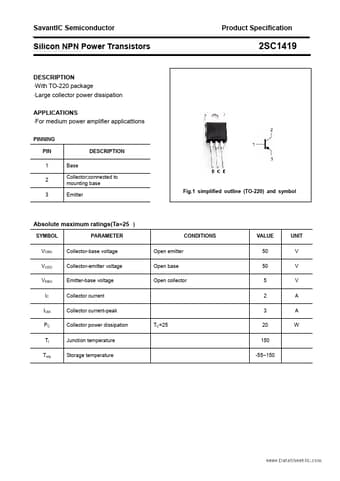

Preview of C1419 PDF
C1419 Datasheet Preview Page 2 C1419 Datasheet Preview Page 3

Datasheet Details

Part number:

C1419

Manufacturer:

SavantIC

File Size:

116.27 KB

Description:

2sc1419.
