C2027 - 2SC2027

Description

With TO-3 package High voltage ,high speed APPLICATIONS For high voltage ,power switching and TV horizontal output applications PINNING(see fig.2) PIN DESCRIPTION 1 Base 2 Emitter 3 Collector Product Specification 2SC2027 Fig.1 simplified outline (TO-3) and symbol Absolute maximum r

📥 Download Datasheet

Datasheet preview – C2027

Datasheet Details

Part number C2027
Manufacturer SavantIC
File Size 132.03 KB
Description 2SC2027
Datasheet download datasheet C2027 Datasheet
Additional preview pages of the C2027 datasheet.

📁 Similar Datasheet

  • C2021 - 2SC2021 (Rohm)
  • C2023 - 2SC2023 (Sanken electric)
  • C2026 - 2SC2026 (Inchange Semiconductor)
  • C2028 - 2SC2028 (Fujitsu Media Devices)
  • C2001 - 2SC2001 (Micro Commercial Components)
  • C2002 - 2SC2002 (NEC)
  • C2003 - 2.0mm Pitch Wire to Wire Connector (HR)
  • C2003 - 2SC2003 (NEC)
  • C200N50Z4 - Surface Mount Termination (Anaren Microwave)
  • C20100CT - Trench Schottky Rectifier (CITC)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

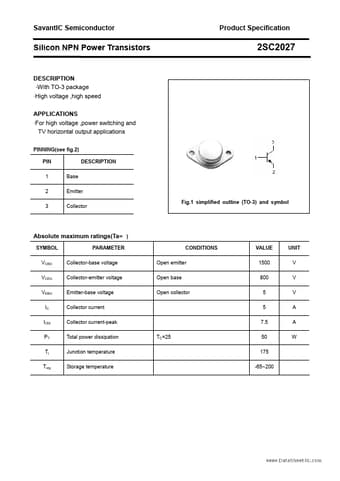

SavantIC Semiconductor wSwiwl.iDcatoaSnheeNt4PU.cNomPower Transistors DESCRIPTION ·With TO-3 package ·High voltage ,high speed APPLICATIONS ·For high voltage ,power switching and TV horizontal output applications PINNING(see fig.2) PIN DESCRIPTION 1 Base 2 Emitter 3 Collector Product Specification 2SC2027 Fig.1 simplified outline (TO-3) and symbol Absolute maximum ratings(Ta= ) SYMBOL PARAMETER VCBO VCEO VEBO IC ICM PT Tj Tstg Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Total power dissipation Junction temperature Storage temperature CONDITIONS Open emitter Open base Open collector TC=25 VALUE 1500 800 5 5 7.5 50 175 -65~200 UNIT V V V A A W SavantIC Semiconductor Silicon NPN Power Transistors www.DataSheet4U.
