Datasheet Details
| Part number | C3320 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 237.76 KB |
| Description | 2SC3320 |
| Datasheet |
 C3320-SavantIC.pdf
|
| Part number | C3320 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 237.76 KB |
| Description | 2SC3320 |
| Datasheet |
C3320-SavantIC.pdf
|

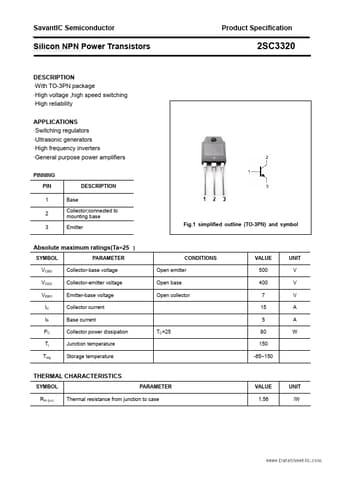

With TO-3PN package High voltage ,high speed switching High reliability APPLICATIONS Switching regulators Ultrasonic generators High frequency inverters General purpose power amplifiers PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO Collector-emitter voltage VEBO IC Emitter-base voltage Col
