C3907 - 2SC3907

C3907 Description

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors .
With TO-3P(I) package. Complement to type 2SA1516 APPLICATIONS. Audio and general purpose power amplifier applications. Recommend for.

C3907 Applications

* Audio and general purpose power amplifier applications
* Recommend for 80W high fidelity audio frequency amplifier output stage PINNING PIN DE 1 2 3 Base Collector;connected to mounting base Emitter SCRIPTION 2SC3907 Fig.1 s implified outline ( TO-3P(I)) and symbol Absolute maximum rating

📥 Download Datasheet

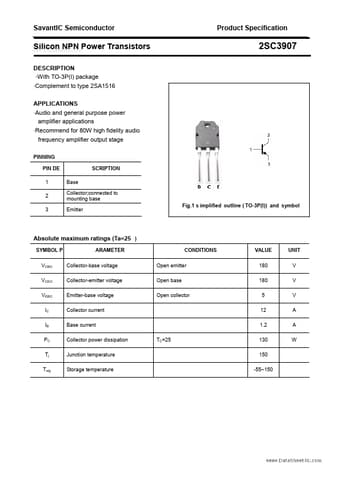

Preview of C3907 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3907
Manufacturer
SavantIC
File Size
232.55 KB
Datasheet
C3907-SavantIC.pdf
Description
2SC3907
