D402 Datasheet - Savantic

D402 2SD402

*With TO-220C package *Complement to type 2SB547 *High breakdown voltage APPLICATIONS *Designed for use in line-operated color TV vertical deflection of complementary symmetry circuit PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ra.

D402_Savantic.pdf

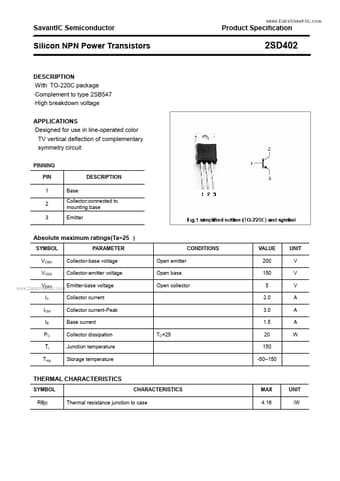

Preview of D402 PDF
D402 Datasheet Preview Page 2 D402 Datasheet Preview Page 3

Datasheet Details

Part number:

D402

Manufacturer:

Savantic

File Size:

128.71 KB

Description:

2sd402.
