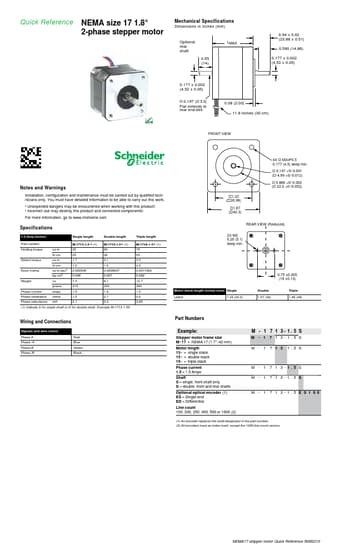

Quick Reference NEMA size 17 1.8° 2-phase stepper motor
Mechanical Specifications Dimensions in inches (mm)
Optional rear shaft
0.55 (14)
LMAX
0.94 ± 0.02 (23.88 ± 0.51)
0.590 (14.86)
0.177 ± 0.002 (4.52 ± 0.05)
0.177 ± 0.002 (4.52 ± 0.05)
Ø 0.197 (Ø 5.0) Flat extends to rear end bell
0.08 (2.03) 11.8 inches (30 cm)
FRONT VIEW
Notes and Warnings
Installation, configuration and maintenance must be carried out by qualified technicians only. You must have detailed information to be able to carry out this work.
• Unexpected dangers may be encountered when working with this product! • Incorrect use may destroy this product and connected components!
For more information, go to www.imshome.com
Specifications
1.5 Amp motors
Single length
Double length
Part number
M-1713-1.
NEMA17 Datasheet
