NEMA23 Datasheet - Schneider

NEMA23 2-phase stepper motor

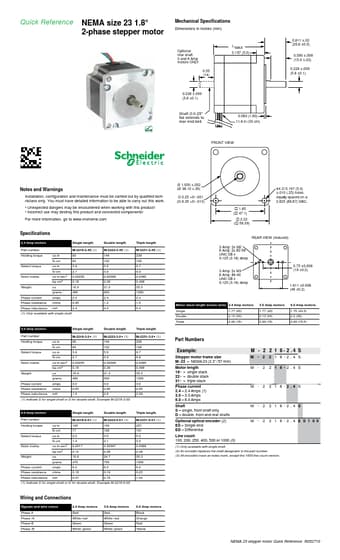

Quick Reference NEMA size 23 1.8° 2-phase stepper motor Mechanical Specifications Dimensions in inches (mm) Optional rear shaft 3 and 6 Amp motors ONLY 0.55 (14) L MAX 0.197 (5.0) 0.228 ±.009 (5.8 ±0.1) Shaft Ø 0.25" flat extends to rear end bell 0.063 (1.60) 11.8 in (30 cm) FRONT VIEW 0.811 ±.02 (20.6 ±0.5) 0.590 ±.008 (15.0 ±.02) 0.228 ±.009 (5.8 ±0.1) Notes and Warnings Installation, configuration and maintenance must be carried out by qualified technicians only. You must have detailed.

NEMA23-Schneider.pdf

Preview of NEMA23 PDF
NEMA23 Datasheet Preview Page 2

Datasheet Details

Part number:

NEMA23

Manufacturer:

Schneider

File Size:

80.97 KB

Description:

2-phase stepper motor.
