SNESD05C

Plastic Encapsulate ESD Protection Diodes

SNESD05C Features

* Bi-directional ESD Protection of One Line

* Low Capacitance: 10pF(Typ.)

* Low Reverse Stand

* off Voltage: 5V

* Low Reverse Clamping Voltage

* Low Leakage Current

* Fast Response Time DFN0201 REF. A B C D Millimeter Min. Max. 0.56 0.67 0.27 0.37 0.27 0.34 0.05 REF.

SNESD05C General Description

Designed to protect voltage sensitive electronic components from ESD and other transients.Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high .

SNESD05C Datasheet (178.71 KB)

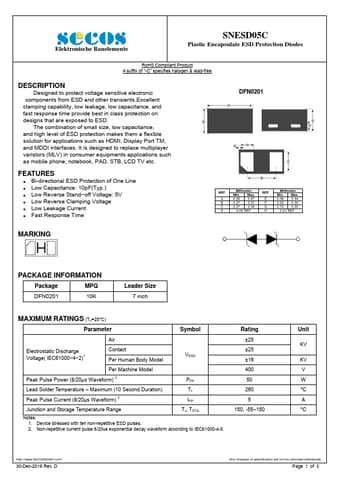

Preview of SNESD05C PDF

Datasheet Details

Part number:

SNESD05C

Manufacturer:

SeCoS Halbleitertechnologie

File Size:

178.71 KB

Description:

Plastic encapsulate esd protection diodes.
Elektronische Bauelemente SNESD05C Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of ā€œ-Cā€ specifies halogen & lead-free .
