BAS70-04C - Surface Mount Schottky Barrier Diode

BAS70-04C Description

Elektronische Bauelemente BAS70/-04/-05/-06 -C Voltage 70V, 70mA Surface Mount Schottky Barrier Diode RoHS Compliant Product A suffix of “-C” specif.

BAS70-04C Features

* High Conductance
* Low Current Leakage
* Small Outline Surface Mount Package MECHANICAL DATA
* Case: SOT-23
* Terminals: solderable per MIL-STD-202, Method 208
* Lead (Pb)-free and Halogen-free PACKAGE INFORMATION Package MPQ SOT-23 3K Leader Size 7 inch SOT-23 ORD

📥 Download Datasheet

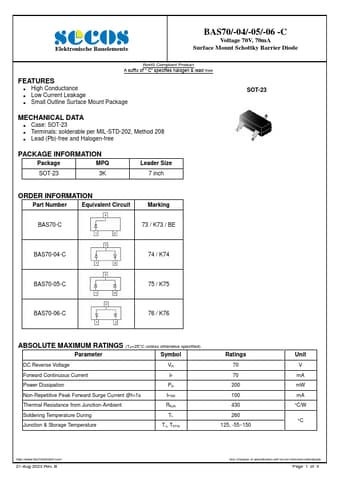

Preview of BAS70-04C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS70-04C
Manufacturer
SeCoS
File Size
271.83 KB
Datasheet
BAS70-04C-SeCoS.pdf
Description
Surface Mount Schottky Barrier Diode
