GBU1502, GBU15005, Bridge Rectifiers

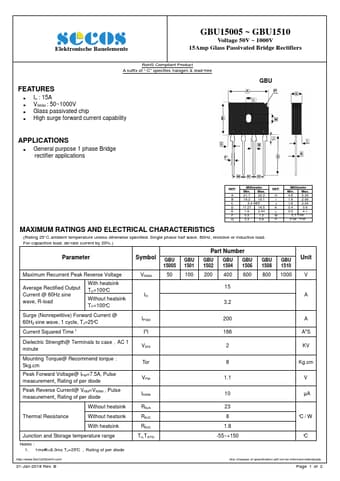

Elektronische Bauelemente GBU15005 ~ GBU1510 Voltage 50V ~ 1000V 15Amp Glass Passivated Bridge Rectifiers RoHS Compliant Product A suffix of “-C” sp.

GBU15005_SeCoS.pdf

GBU1502 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU1502, GBU15005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBU1502, GBU15005

Manufacturer:

SeCoS

File Size:

240.52 KB

Description:

Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: GBU1502, GBU15005.
Please refer to the document for exact specifications by model.

Applications

* General purpose 1 phase Bridge rectifier applications REF. A B C D E F G Millimeter Min. Max. 21.7 22.3 18.2 19.1 3.4 REF. 17.27 18.5 1.8 2.54 0.9 1.3 3.3 3.8 REF. H I J K L M P Millimeter Min. Max. 4.8 5.33 1.8 2.66 1.8 2.54 0.4 0.6 3.5 4.1 5.7 TYP. 3
* 45° TYP. MAXIMUM RATINGS AND ELECTRICA
