GBU2004

Bridge Rectifiers

GBU2004 Features

* Io : 20A VRRM : 50~1000V Glass passivated chip High surge forward current capability GBU APPLICATIONS General purpose 1 phase Bridge rectifier applications REF. A B C D E F G Millimeter Min. Max. 21.7 22.3 18.2 18.8 3

* 45° TYP. 17.5 18.5 1.8 2.54 0.9 1.27 3.3 3.8 REF. H I J K L M Millimeter

GBU2004 Datasheet (417.29 KB)

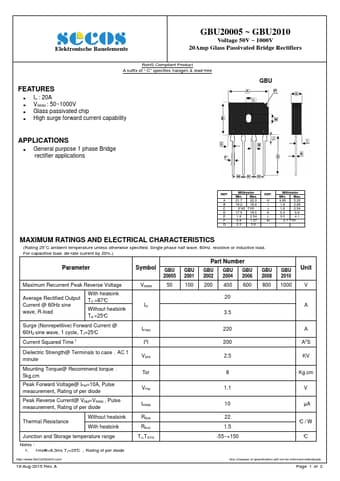

Preview of GBU2004 PDF

Datasheet Details

Part number:

GBU2004

Manufacturer:

SeCoS

File Size:

417.29 KB

Description:

Bridge rectifiers.
Elektronische Bauelemente GBU20005 ~ GBU2010 Voltage 50V ~ 1000V 20Amp Glass Passivated Bridge Rectifiers RoHS Compliant Product A suffix of “-C” sp.
