KTC3197 - NPN Transistor

Product Overview

SeCoS

📥 Download Datasheet

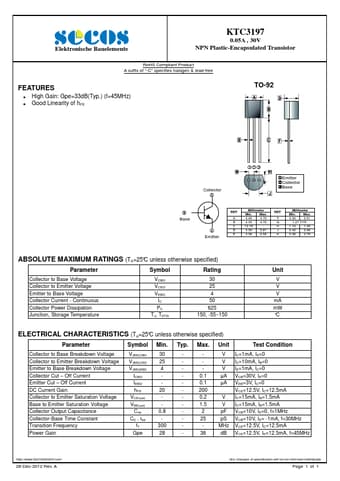

KTC3197 NPN Transistor by SeCoS - Datasheet Preview — Datasheet preview – KTC3197

Datasheet Details

Part number	KTC3197
Manufacturer	SeCoS
File Size	64.48 KB
Description	NPN Transistor
Datasheet	KTC3197 Datasheet
Additional preview pages of the KTC3197 datasheet.

Product details

Features

High Gain: Gpe=33dB(Typ. ) (f=45MHz) Good Linearity of hFE TO-92 3 Base Collector 2 1Emitter 2Collector 3Base 1 Emitter REF. A B C D E Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 - 3.30 3.81 0.36 0.56 REF. F G H J K Millimeter Min. Max. 0.30 0.51 1.27 TYP. 1.10 1.40 2.42 2.66 0.36 0.76.
