MMBZ5233BW - Surface Mount Zener Voltage Regulator Diodes

Product Overview

SeCoS

📥 Download Datasheet

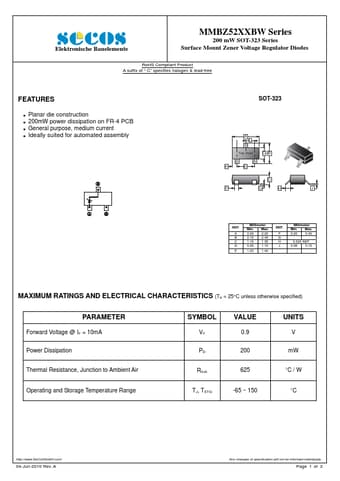

MMBZ5233BW Surface Mount Zener Voltage Regulator Diodes by SeCoS - Datasheet Preview — Datasheet preview – MMBZ5233BW

Datasheet Details

Part number	MMBZ5233BW
Manufacturer	SeCoS
File Size	332.73 KB
Description	Surface Mount Zener Voltage Regulator Diodes
Datasheet	MMBZ5233BW Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBZ5233BW, MMBZ5221BW. Please refer to the document for exact specifications by model.
Additional preview pages of the MMBZ5233BW datasheet.

Product details

Features

Planar die construction.
200mW power dissipation on FR-4 PCB.
General purpose, medium current.
Ideally suited for automated assembly.
   SOT-323 A L 3 Top View CB 12 KE 1 D F GH 3 2 J REF. A B C D E Millimeter Min. Max. 2.00 2.15 1.15 2.20 2.45 1.35 0.90 1.10 1.20 1.40 REF. F G H J Millimeter Min. Max. 0.20 0.40 -0.525 REF. 0.08 0.15.
