S10JB80 - Bridge Rectifier

S10JB80 Description

Elektronische Bauelemente S10JB80 Voltage 800V 10.0 Amp Glass Passivited Bridge Rectifiers RoHS compliant product A suffix of “-C” specifies halogen.

S10JB80 Features

* Ideal for printed circuit board
* Low forward voltage drop, high current capability
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product JB REF. A B C D E F Millimeter Min. Max. 24.7 25.3 10.0 10.6 1.7 TYP. 5.5 5.9 7.3 7.7 2.8 3.2 REF.

📥 Download Datasheet

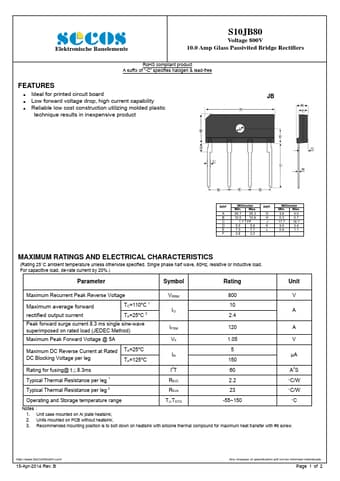

Preview of S10JB80 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S10JB80
Manufacturer
SeCoS
File Size
243.26 KB
Datasheet
S10JB80-SeCoS.pdf
Description
Bridge Rectifier
