SCS1100P

Schottky Barrier Rectifiers

SCS1100P Features

*      High Current Capability Extremely Low Thermal Resistance For Surface Mount Application Higher Temp Soldering : 250°C for 10 Seconds at Terminals Low Forward Voltage H PACKAGE DIMENSIONS SOD

* 123 PLASTIC PACKAGE A B C E MECHANICAL DATA  Case: Molded Plastic  Epoxy: UL 94V-0 Rate

SCS1100P Datasheet (238.69 KB)

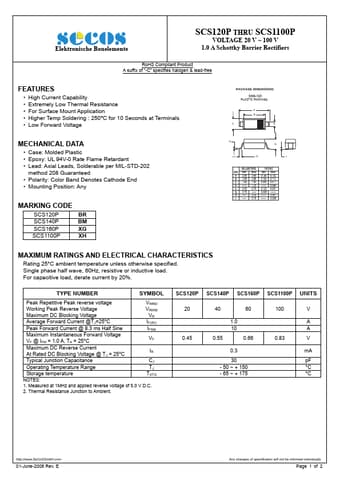

Preview of SCS1100P PDF

Datasheet Details

Part number:

SCS1100P

Manufacturer:

SeCoS

File Size:

238.69 KB

Description:

Schottky barrier rectifiers.
SCS120P THRU SCS1100P Elektronische Bauelemente VOLTAGE 20 V ~ 100 V 1.0 A Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specif.
