SFG10SD300F, SFG10SD200F Super Fast Rectifier

SeCoS

Description

SFG10SD200F ~ SFG10SD600F Elektronische Bauelemente RoHS Compliant Product A suffix of “-C” specifies and halogen free Voltage 200 to 600 V 10 Amp Su.

📥 Download Datasheet

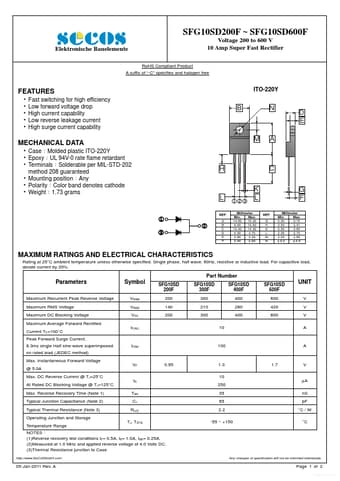

SFG10SD300F Datasheet Preview — This datasheet PDF includes multiple part numbers: SFG10SD300F, SFG10SD200F. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SFG10SD300F, SFG10SD200F
Manufacturer: SeCoS
File Size: 408.78 KB
Datasheet: SFG10SD200F_SeCoS.pdf
Description: Super Fast Rectifier
Note: This datasheet PDF includes multiple part numbers: SFG10SD300F, SFG10SD200F.
Please refer to the document for exact specifications by model.

Features

*  Fast switching for high efficiency  Low forward voltage drop  High current capability  Low reverse leakage current  High surge current capability MECHANICAL DATA  Case：Molded plastic ITO-220Y  Epoxy：UL 94V-0 rate flame retardant  Terminals：Solderable per MIL-STD-202 method 208 guaranteed 
