SK34CL - Schottky Barrier Rectifiers

Datasheet Summary

Features

  • Ideal for surface mount.

📥 Download Datasheet

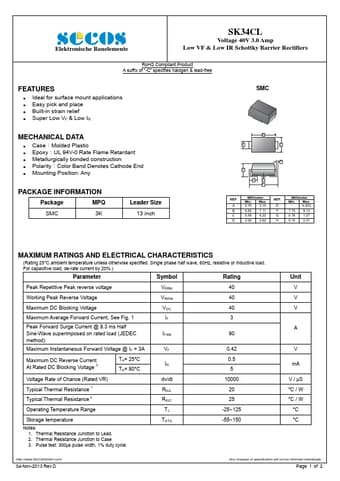

Datasheet preview – SK34CL

Datasheet Details

Part number SK34CL
Manufacturer SeCoS
File Size 130.93 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet SK34CL Datasheet
Additional preview pages of the SK34CL datasheet.

📁 Similar Datasheet

  • SK34C - Schottky Barrier Rectifier (MERITEK)
  • SK34C - 3A Surface Mount Schottky Barrier Rectifiers (CITC)
  • SK34C - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (KD)
  • SK34C - SCHOTTKY BARRIER RECTIFIER (GOOD ELECTRONIC)
  • SK34C - SURFACE MOUNT SCHOTTKY BARRIER DIODES (SunMate)
  • SK34C - 3.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • SK34C - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (CHENG-YI)
  • SK34C - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Paceleader)
  • SK34 - 3 Amp Schottky Rectifier (MCC)
  • SK34 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes)
Other Datasheets by SeCoS
  • SK345LHT - Surface Mount Schottky Barrier Rectifiers
  • SK34L - 3.0AMP Surface Mount Schottky Barrier Rectifiers
  • SK34LL - 3.0AMP Surface Mount Schottky Barrier Rectifiers
  • SK3100L-C - Schottky Barrier Rectifiers
  • SK32BL - 3.0 Amp Surface Mount Schottky Barrier Rectifiers
  • SK32CL - 3.0 Amp Surface Mount Schottky Barrier Rectifiers
  • SK32L - 3.0AMP Surface Mount Schottky Barrier Rectifiers
  • SK32LL - 3.0AMP Surface Mount Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text
Elektronische Bauelemente SK34CL Voltage 40V 3.0 Amp Low VF & Low IR Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Ideal for surface mount applications  Easy pick and place  Built-in strain relief  Super Low VF & Low IR MECHANICAL DATA  Case：Molded Plastic  Epoxy：UL 94V-0 Rate Flame Retardant  Metallurgically bonded construction  Polarity：Color Band Denotes Cathode End  Mounting Position: Any PACKAGE INFORMATION Package MPQ SMC 3K Leader Size 13 inch SMC B AC D GE F H REF. A B C D Millimeter Min. 2.75 Max. 3.15 6.60 7.11 5.59 6.22 2.00 2.62 REF. E F G H Millimeter Min. - Max. 0.203 7.75 8.13 0.76 1.27 0.15 0.
