SM1100AM, SM120AM 1.0 AMP Surface Mount Schottky Barrier Rectifiers

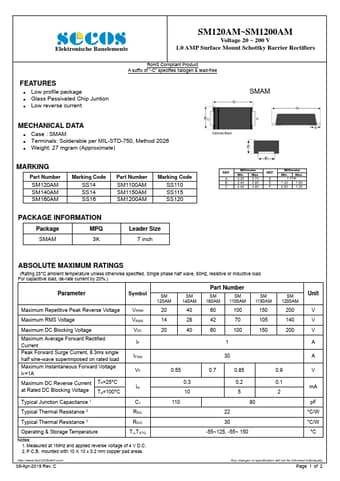

📥 Download Datasheet  Datasheet Preview Page 1

Description

Elektronische Bauelemente SM120AM~SM1200AM Voltage 20 ~ 200 V 1.0 AMP Surface Mount Schottky Barrier Rectifiers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM1100AM, SM120AM. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
SM1100AM, SM120AM
Manufacturer
SeCoS
File Size
206.92 KB
Datasheet
SM120AM-SeCoS.pdf
Description
1.0 AMP Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM1100AM, SM120AM.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Glass Passivated Chip Juntion
* Low reverse current RoHS Compliant Product A suffix of ā€œ-Cā€ specifies halogen & lead-free SMAM MECHANICAL DATA
* Case : SMAM
* Terminals: Solderable per MIL-STD-750, Method 2026
* Weight: 27 mgram (Approximate) MARKI

SM1100AM Distributors
