SM1100AM-C, SM120AM-C - 1.0 Amp Surface Mount Schottky Barrier Rectifiers

SM1100AM-C Description

Elektronische Bauelemente SM120AM-C~SM1200AM-C Voltage 20~200V 1.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of .

SM1100AM-C Features

* Low Profile Package
* Glass Passivated Chip Junction
* Low Reverse Current MECHANICAL DATA
* Case: SMAM
* Terminals: Solderable per MIL-STD-750, Method 2026 SMAM MARKING Part Number SM120AM-C SM140AM-C SM160AM-C Marking Code SS14 SS14 SS16 Part Number SM1100AM-C SM1150AM-C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM1100AM-C, SM120AM-C. Please refer to the document for exact specifications by model.

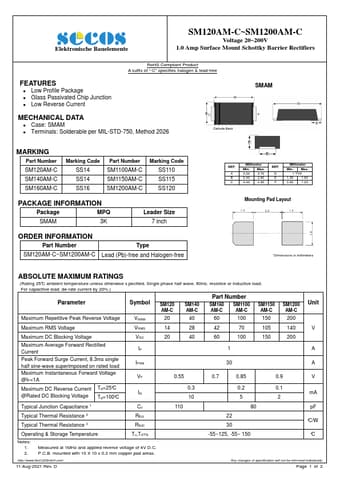

datasheet Preview Page 2

Datasheet Details

Part number
SM1100AM-C, SM120AM-C
Manufacturer
SeCoS
File Size
233.23 KB
Datasheet
SM120AM-C-SeCoS.pdf
Description
1.0 Amp Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM1100AM-C, SM120AM-C.
Please refer to the document for exact specifications by model.
