SM1100JD

Schottky Barrier Rectifiers

SM1100JD Features

* Low forward surge current Ideal for surface mounted applications Low leakage current MECHANICAL DATA Case: JEDEC SOD-123JD, molded plastic over passivated chip Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end MARKING Product SM120JD SM140JD

SM1100JD Datasheet (219.66 KB)

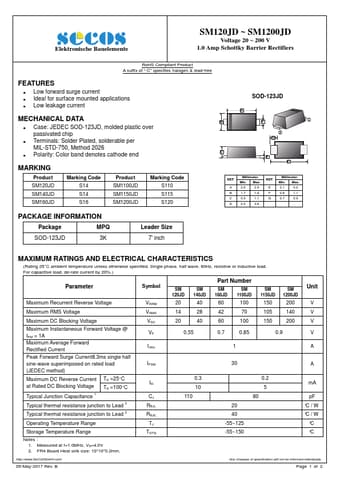

Preview of SM1100JD PDF

Datasheet Details

Part number:

SM1100JD

Manufacturer:

SeCoS

File Size:

219.66 KB

Description:

Schottky barrier rectifiers.
Elektronische Bauelemente SM120JD ~ SM1200JD Voltage 20 ~ 200 V 1.0 Amp Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specifie.
