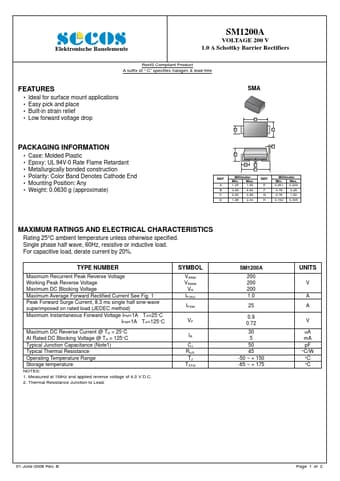

SM1200A
FEATURES
Ideal for surface mount applications Easy pick and place Built-in strain relief Low forward voltage drop
B AC
PACKAGING INFORMATION
Case: Molded Plastic Epoxy: UL 94V-0 Rate Flame Retardant Metallurgically bonded construction Polarity: Color Band Denotes Cathode End Mounting Position: Any Weight: 0.0630 g (approximate)
REF.
GE F
Millimeter Min. Max. 1.25 1.65 3.99 4.60
2.50 2.90 1.98 2.44
REF.
Millimeter Min. Max. 0.051 0.203 4.78 5.28
0.76 1.52 0.152 0.305
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage Working Peak Reverse Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)...
