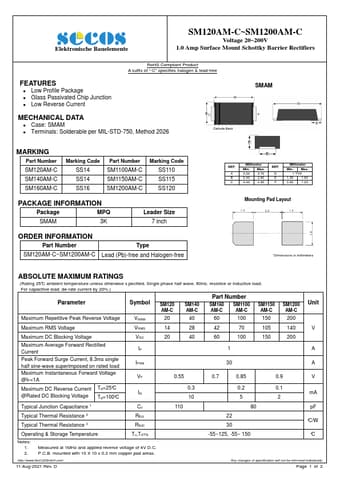

SM1200AM-C
FEATURES
- Low Profile Package
- Glass Passivated Chip Junction
- Low Reverse Current
MECHANICAL DATA
- Case: SMAM
- Terminals: Solderable per MIL-STD-750, Method 2026
SMAM
MARKING
Part Number SM120AM-C SM140AM-C SM160AM-C
Marking Code SS14 SS14 SS16
Part Number SM1100AM-C SM1150AM-C SM1200AM-C
Marking Code SS110 SS115 SS120
PACKAGE INFORMATION
Package
SMAM
3K
Leader Size 7 inch
ORDER INFORMATION
Part Number SM120AM-C~SM1200AM-C
Type Lead (Pb)-free and Halogen-free
REF.
Millimeter Min. Max. 3.20 3.70 2.40 2.80 4.40 4.90
REF.
Millimeter Min. Max.
1 TYP. 1.30 1.60 0.90 1.20
Mounting Pad Layout
- Dimensions in millimeters
ABSOLUTE MAXIMUM RATINGS
(Rating 25°C ambient temperature unless otherwise s pecified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, de-rate current by 20%.)
Parameter
Symbol
SM120 AM-C
SM140 AM-C
Part Number
SM160 AM-C
SM1100...
