SM2200AM, SM220AM - 2.0 AMP Surface Mount Schottky Barrier Rectifiers

SM2200AM Description

Elektronische Bauelemente SM220AM~SM2200AM Voltage 20 ~ 200 V 2.0 AMP Surface Mount Schottky Barrier Rectifiers .

SM2200AM Features

* Low profile package
* Glass Passivated Chip Juntion
* Low reverse current RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free SMAM MECHANICAL DATA
* Case : SMAM
* Terminals: Solderable per MIL-STD-750, Method 2026
* Weight: 27 mgram (Approximate) MARKI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM2200AM, SM220AM. Please refer to the document for exact specifications by model.

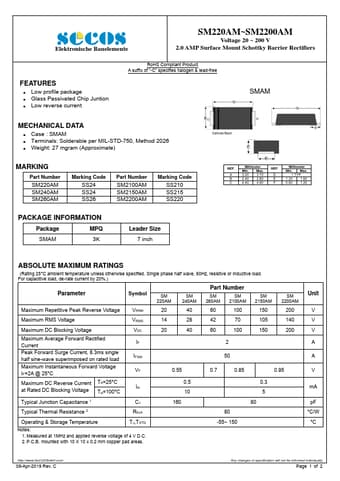

datasheet Preview Page 2

Datasheet Details

Part number
SM2200AM, SM220AM
Manufacturer
SeCoS
File Size
224.79 KB
Datasheet
SM220AM-SeCoS.pdf
Description
2.0 AMP Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM2200AM, SM220AM.
Please refer to the document for exact specifications by model.
