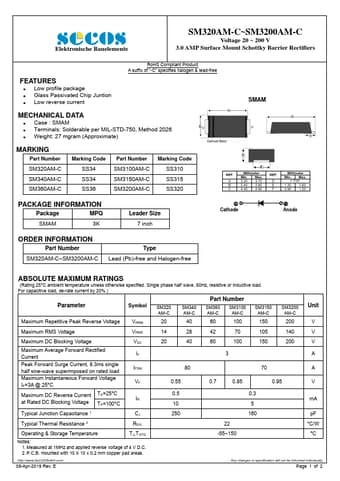

SM3200AM-C
FEATURES
- Low profile package
- Glass Passivated Chip Juntion
- Low reverse current
Ro HS pliant Product A suffix of “-C” specifies halogen & lead-free
SMAM
MECHANICAL DATA
- Case : SMAM
- Terminals: Solderable per MIL-STD-750, Method 2026
- Weight: 27 mgram (Approximate)
MARKING
Part Number
SM320AM-C SM340AM-C SM360AM-C
Marking Code
SS34 SS34 SS36
Part Number
SM3100AM-C SM3150AM-C SM3200AM-C
Marking Code
SS310 SS315 SS320
REF.
Millimeter
Min.
3.20 2.40
Max.
3.70 2.80
4.40 4.90
REF.
Millimeter
Min. Max. 1 TYP.
1.30 1.60 0.90 1.20
PACKAGE INFORMATION
Package
SMAM
3K
Leader Size 7 inch
Cathode...
