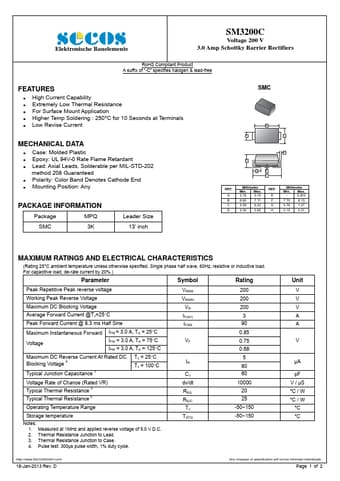

SM3200C
FEATURES
- High Current Capability
- Extremely Low Thermal Resistance
- For Surface Mount Application
- Higher Temp Soldering : 250°C for 10 Seconds at Terminals
- Low Revise Current
MECHANICAL DATA
- Case: Molded Plastic
- Epoxy: UL 94V-0 Rate Flame Retardant
- Lead: Axial Leads, Solderable per MIL-STD-202 method 208 Guaranteed
- Polarity: Color Band Denotes Cathode End
- Mounting Position: Any
PACKAGE INFORMATION
Package
3K
Leader Size 13’ inch
B AC
GE F
REF.
Millimeter
Min. 2.75
Max. 3.15
6.60 7.11
5.59 6.22
2.00 2.62
REF.
Millimeter
Min.
- Max. 0.203
7.75 8.13
0.76 1.27
0.15 0.31
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS...
