SM4006FLCR-C, SM4001FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

SM4006FLCR-C Description

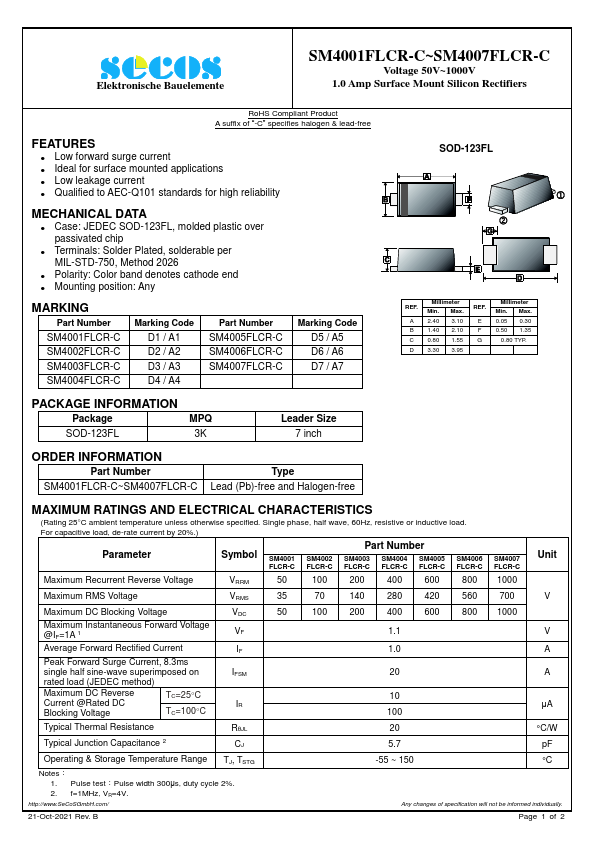

Elektronische Bauelemente SM4001FLCR-C~SM4007FLCR-C Voltage 50V~1000V 1.0 Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-.

SM4006FLCR-C Features

* Low forward surge current

SM4006FLCR-C Applications

* Low leakage current
* Qualified to AEC-Q101 standards for high reliability MECHANICAL DATA
* Case: JEDEC SOD-123FL, molded plastic over passivated chip
* Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026
* Polarity: Color band denotes cathode end
* Mounting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM4006FLCR-C, SM4001FLCR-C. Please refer to the document for exact specifications by model.

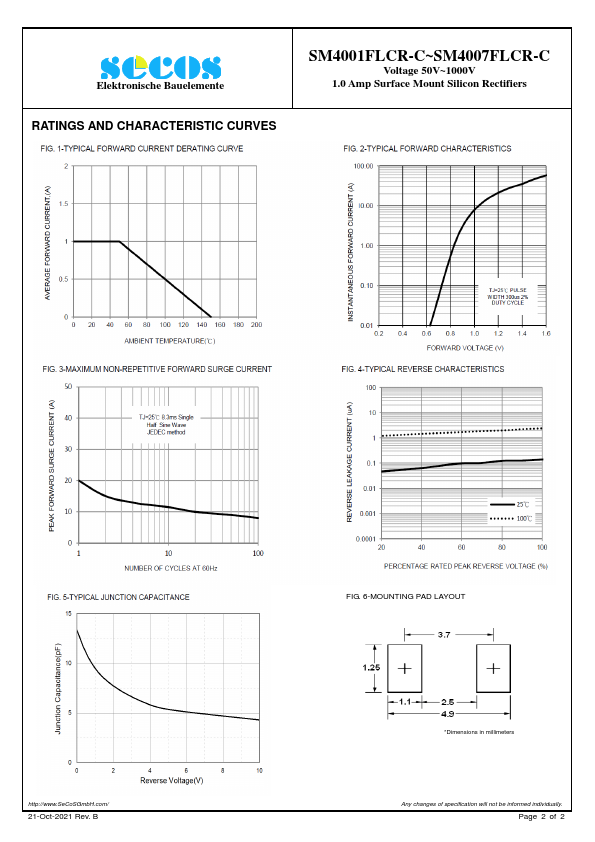

datasheet Preview Page 2

Datasheet Details

Part number
SM4006FLCR-C, SM4001FLCR-C
Manufacturer
SeCoS
File Size
325.28 KB
Datasheet
SM4001FLCR-C-SeCoS.pdf
Description
1.0 Amp Surface Mount Silicon Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM4006FLCR-C, SM4001FLCR-C.
Please refer to the document for exact specifications by model.
