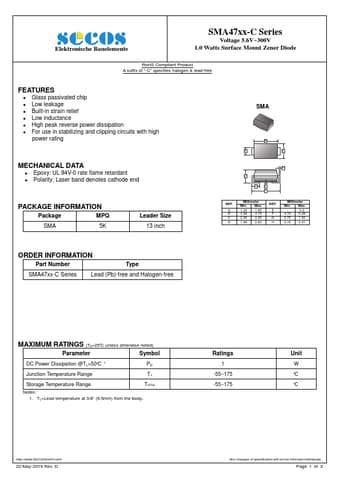

* Glass passivated chip Low leakage Built-in strain relief Low inductance High peak reverse power dissipation For use in stabilizing and clipping circuits with high power rating MECHANICAL DATA Epoxy: UL 94V-0 rate flame retardant Polarity: Laser band denotes cathode end PACKAGE INFORMATION Package
SMAZ1120-C Datasheet (369.22 KB)
SMAZ1120-C
SeCoS
369.22 KB
1.0 watts surface mount zener diode.
Elektronische Bauelemente
SMA47xx-C Series
Voltage 5.6V~300V 1.0 Watts Surface Mount Zener Diode
RoHS Compliant Product A suffix of “-C” specifies h.
